Retail Store Wiring and LED Lighting at Bealls in Orlando
A working retail floor, a fiberglass ladder and a lighting package that had to go in while shoppers were still in the aisles.
- ScopeStore wiring and linear LED lighting
- LocationOrlando, Florida
- SectorRetail, occupied throughout the work
- Verified on siteLighting branch measured at 283 volts

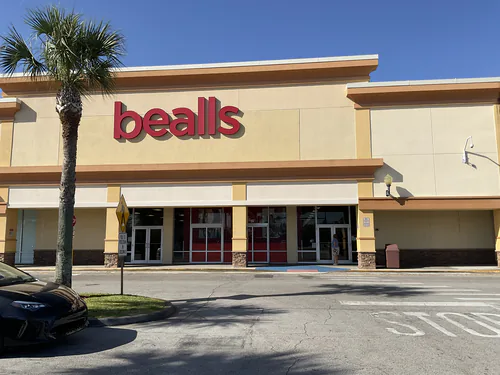

Bealls sits in a strip anchored plaza off the main road, the kind with a palm out front and a striped crosswalk to the doors. The store never closed for this work. That one constraint shaped everything else about the job.
The scope covered the sales floor lighting and the branch wiring behind it. Rows of linear LED strips run the full length of the ceiling above the departments, hung from the open bar joist structure, and they had to come down and go back up a bay at a time. Our tech worked from a fiberglass ladder set between fixture racks with the merchandise still hanging and the caution cones out. Between the fixtures themselves and the low voltage control panel that switches them, this was a straightforward package executed under awkward conditions. That describes most commercial electrical work in a live store. Anyone hiring an electrician in Orlando for an occupied space should ask how a contractor plans that part before asking about price.
What did the Bealls store actually need?

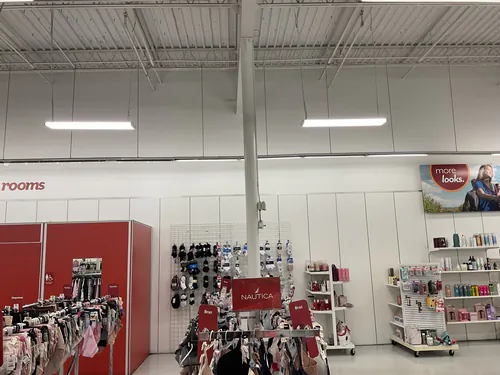

New lighting on the sales floor and the circuits to feed it. The old fixtures came out and linear LED strips went in, department by department, from the baby section through shoes and intimates.

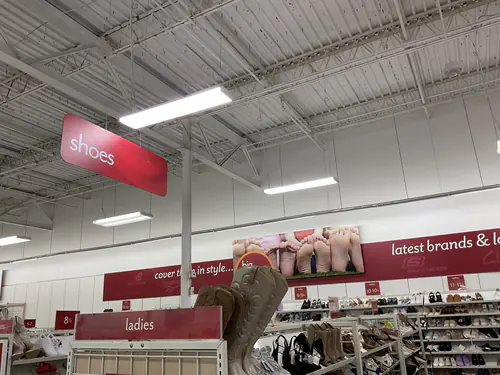

Retail ceilings are not friendly. Above the finished white deck at Bealls there is open steel bar joist, sprinkler branch line, ductwork and existing conduit, all of it competing for the same few inches. Each fixture hangs on its own points and every one of them has to clear the sprinkler heads. Get that wrong and the fire marshal will find it. The department signage complicates the layout further, because the baby and shoes and ladies panels hang on their own cables through the same field, so spacing gets adjusted in the aisle rather than on paper.

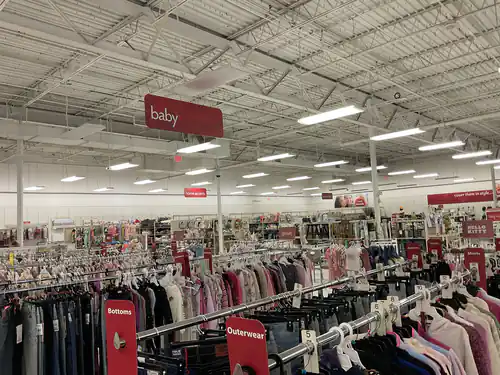

The result is a floor that reads evenly bright instead of patchy, which matters more in retail than almost anywhere else. Colors sell. A shopper deciding between two shades of the same sweater is making that call under whatever we hung. Our commercial lighting installation crews do this work in stores across Orange County.
How do you rewire a store that never closes?
Slowly, and in small pieces. The floor gets divided into work zones, one zone comes down at a time, and that zone goes back to shoppable before the crew moves on.

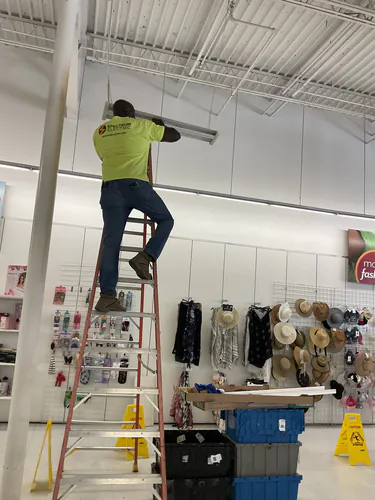

In practice the cones and caution signs go out before the ladder does. Bins of stock living in the aisle get moved and moved back. The ladder gets set, used and struck the same day rather than left standing overnight in a public space. On this job the tech worked directly under the run he was replacing, with racks of hats and scarves within arm reach on both sides. That is exactly the situation where a dropped lens or a dropped nut turns into an incident report instead of an inconvenience.
There is a scheduling side to it as well. Some of this work sits better before opening or after close, and some of it genuinely cannot wait for either. When a circuit drops in the middle of a Saturday, that is a different call entirely, and our 24/7 emergency electricians are the ones who take it.
What gets checked before the crew leaves?
The circuit, not just the fixture. A light that turns on proves almost nothing on its own.

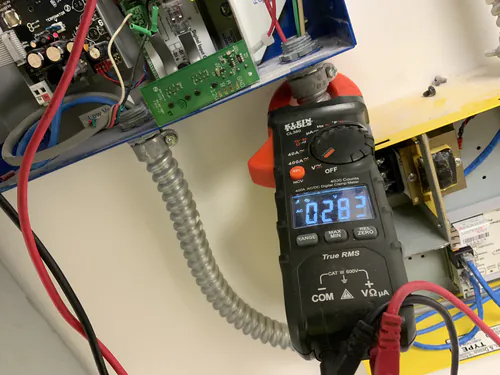

The clamp meter photo in the gallery is the part of this job worth pointing at. That is a Klein Tools CL380 True RMS meter reading 283 volts on the lighting branch at the control panel, taken with the low voltage relay boards open beside it. A reading like that confirms the phase is present and sitting where it should before the panel gets buttoned up and the ceiling goes back together. It also leaves the store a number to compare against the next time something flickers.
Everything else follows the same principle. Connections get checked at the device rather than assumed from the panel. Covers go back on. Any receptacle or switch disturbed during the work gets tested instead of eyeballed, which is the same standard we apply to outlet and switch installation in a house.
From the job site
Bealls lighting and wiring photos
