240 Volt Dryer Outlet Replacement in Maitland
A worn dryer receptacle tested live at 248 volts, the laundry wall opened up around it, and a new outlet fitted that the cord actually seats into.
- Scope240 volt receptacle test, wall opening, outlet replacement
- LocationMaitland, Florida
- SectorResidential
- EquipmentKlein Tools clamp meter, surface style 240 volt receptacle
Most people call it the dryer plug. We call it a 240 volt receptacle, and when one wears out it rarely fails politely.
This one sat in a Maitland laundry area, low on the wall behind the dryer, where a foil vent duct, the washer drain hose and two braided water lines all fight over the same strip of drywall. The old receptacle was sitting crooked in its opening. Its cover plate was bent, and the conductor insulation behind it had gone yellow and stiff with age. A worn dryer receptacle slowly loses its grip on the plug blades, and a loose connection carrying a heating element's load turns into heat at the contact. The job was simple to describe: prove what the circuit was delivering, open the wall enough to deal with the box properly, and leave an outlet the cord locks into firmly. Anyone calling an electrician in Maitland about a dryer that heats one day and not the next should expect a meter on the circuit before anything gets unscrewed.
How do you test a 240 volt outlet before replacing it?
Put a meter across the two hot slots with the circuit live. It should read close to 240 volts, and this one read 248.

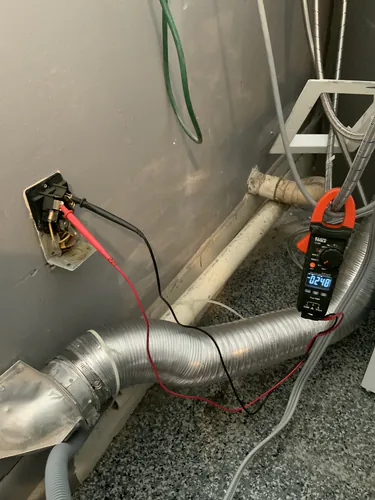

That number came off a Klein Tools clamp meter, red and black leads pushed into the old receptacle while the breaker was still on. It answers the first question on every outlet call. Is the outlet the problem, or is something upstream? Standard utility tolerances let a 240 volt service run anywhere from about 228 to 252 volts, so 248 means both legs of the two pole breaker are delivering and the feed is healthy. A reading near 120 tells a different story. So does a blank screen. Those point back toward a failed breaker, a loose lug or a damaged cable, and a brand new receptacle would not have fixed any of them.
We also read each hot to ground, and to neutral where one exists. Those should split roughly in half. It takes two minutes and it is standard on every outlet and switch installation we do.
Why cut into the wall just to replace an outlet?
Because the box behind a worn dryer outlet matters as much as the receptacle, and you cannot set a box properly through a hole it does not fit.

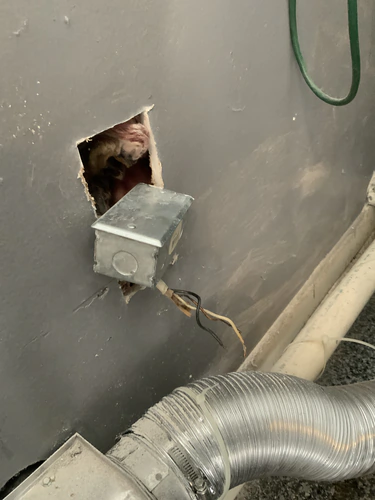

In this photo the drywall has been opened around the outlet location and a metal box sits in the opening. The existing cable comes out below it: a black conductor, lighter conductors in aged tan insulation, and the ground. You can see the wall insulation in the cavity behind. A 30 amp dryer receptacle is physically larger than an everyday outlet, and the conductors feeding it are heavy and stiff. Force them into a box without enough room and the insulation gets nicked, the terminals get side loaded, and the problem you just fixed starts again.
A clean opening costs a little patching afterward. That is the right trade. The vent duct stayed connected at the wall the whole time, which is how it should go in a tight laundry nook. Crowded boxes and brittle old insulation are also exactly what an electrical inspection looks for in an older home.
Does a new dryer outlet need three prongs or four?
A new dryer circuit gets a four prong receptacle with a separate neutral and ground. An existing three wire circuit can usually keep a three prong outlet, and the dryer cord always has to match the wall.

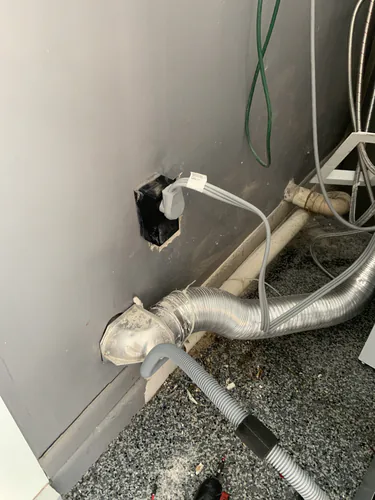

The finished outlet sits in a black surface style housing over the opening, with the dryer's gray cord plugged straight in and a white tag still wrapped around it near the plug. When a receptacle changes type, the cord changes with it. So does the bonding strap on the dryer's terminal block, which is set one way for three wire and another for four. Get that wrong and the dryer cabinet can end up carrying neutral current.
Code has tightened here too. The 2020 NEC pulled laundry area receptacles up to 250 volts into the GFCI rules, so a replacement is a good moment to ask what your inspector will want. If the panel cannot take a two pole GFCI breaker, that question can grow into an electrical panel upgrade. Better to hear it before the dryer is pushed back.
