Replacing a Worn Outdoor Main Breaker in Orlando
A corroded two pole disconnect under the meter, swapped for a new 100 amp breaker inside the existing outdoor enclosure.
- ScopeOutdoor main disconnect breaker replacement
- LocationOrlando, Florida
- SectorResidential, multi-meter service
- EquipmentTwo pole 100 amp common trip breaker, existing enclosure
The switch that shuts off power to a whole unit often lives outside, under the meter. Nobody looks at it until it stops working right.

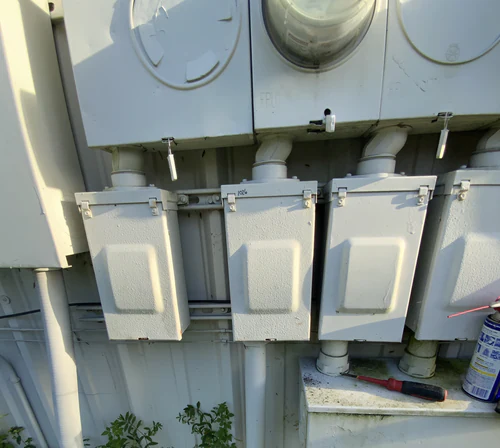

This job was on the exterior service wall of a multi-meter building in Orlando: a row of meter sockets across the top, and under each one a small gray enclosure holding a two pole main breaker. Those breakers are the service disconnects. Switch one off and everything behind it goes dark. The ones on this wall had spent years in Florida sun and rain, and the one we opened was in rough shape, with grime packed around the handles, crusted terminal screws and a steel box rusting from the bottom up. The fix was a new two pole 100 amp breaker, installed in the existing enclosure behind the original cover. If you need an electrician in Orlando to look at a service wall like this, the first visit is mostly reading labels and opening boxes.
When does an old main breaker need replacing?
When it no longer operates cleanly, shows corrosion at the terminals, or has sat in the weather long enough that nobody can say it will still trip. Age alone is not the test.

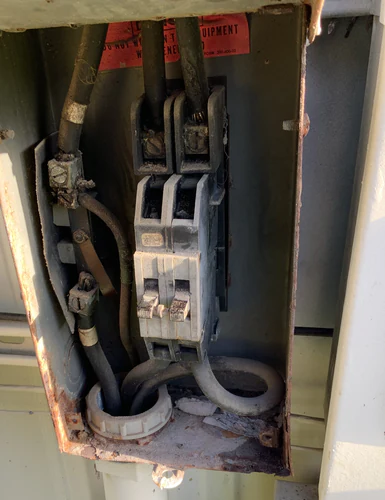

Look at the old breaker in this photo. Both handles were still tied together and each pole still read 100, so on paper it was the right part. In person it was coated in dust, the lug screws where the incoming conductors land had gone dull and crusty, and the floor of the enclosure was flaking rust into the space where the load cables loop out through a plastic bushing. A faded red factory label still warns against working on the equipment while it is energized. That label is right. The line side of a main breaker is fed straight from the meter, so even with the handle off those top lugs are live.
A main breaker is a mechanical device whose one job is to open under a fault, often after years of never being asked to. Corrosion and heat cycling are exactly what stop it from doing that job. When one breaker on a wall looks like this, an electrical inspection is the cheap way to learn how many of its neighbors look the same.
Can you replace the main breaker without replacing the panel?
Often, yes. If the enclosure, the mounting and the conductors are still sound, a listed replacement breaker of the same rating can go back into the existing box.

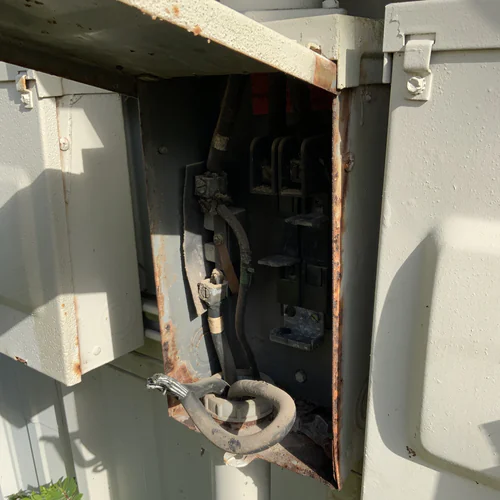

That is what happened here. With the old breaker out, what remains is the bare mounting: the clips the breaker plugs onto, the neutral lug on the left with its conductor still landed, and the stranded load cable pulled back out of the way. Conductor ends like that one get a close look before anything is reconnected. Nicked, burned or oxidized strands mean cutting back to clean metal.

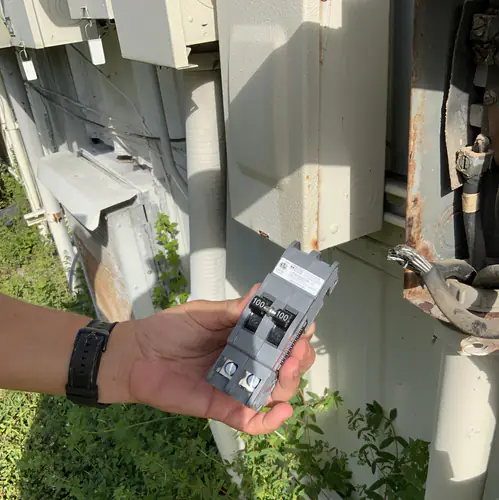

The replacement is a two pole, common trip 100 amp breaker with an ETL listing mark printed on its label. Matching the original rating matters more than people think. A bigger breaker does not give a unit more power. It just stops protecting wire that was sized for 100 amps, and that trade is how service conductors overheat.
This was a repair rather than a full electrical panel upgrade, and it costs a fraction of one. Whether it was the right call for the long run depends on the box around it.
What does a rusted service enclosure tell you?
It tells you how much time the box has left. Surface rust is cosmetic, but rust eating through the bottom edge, where water collects, is a countdown.

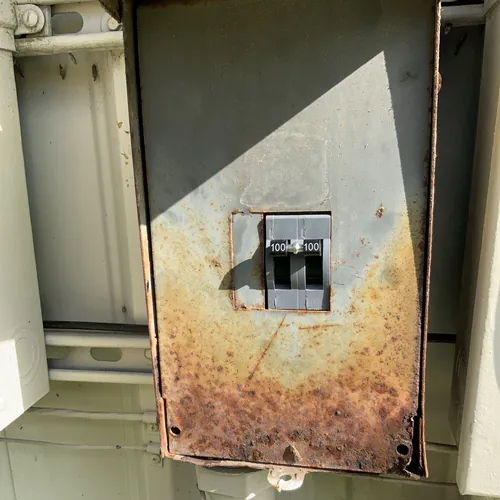

The new handles now show through the original cover, and that cover is rusting heaviest along its lower third, with the cut edges around the breaker opening going too. The rest of the wall is in better shape. The meter sockets above still have their seals and hasps, the white PVC conduits between boxes are intact, and the strut rails holding everything to the painted metal siding look solid. That mix is normal on older multi-meter walls, since each box weathers at its own pace depending on sun, sprinklers and roof runoff.
For a property owner, the practical move is to walk the whole row at once. If one disconnect needed a new breaker, the ones beside it have seen the same weather. Replacing enclosures one at a time as they fail usually means paying for several service calls instead of one planned job, with occupants losing power more than once. If a disconnect ever feels hot, smells burnt or will not stay on, stop resetting it and call an emergency electrician.
