Whole Home Panel Upgrade in Winter Park
A packed load center with a handwritten directory, a service outside that had to be checked first, and a finished panel with room left for what comes next.
- ScopePanel rework, conductor dress, surge protection, cover and labeling
- LocationWinter Park, Florida
- SectorResidential
- EquipmentGE PowerMark Gold load center, 200 amp service main, ABB THQLSURGE device
Most panel calls start the same way. There is no room for one more breaker.

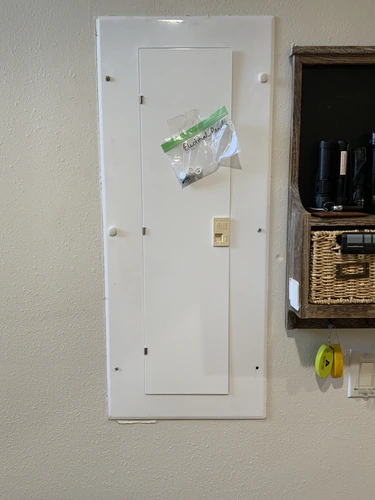

This Winter Park house had a flush mounted GE PowerMark Gold load center set into the drywall and a zip bag of cover screws marked Electrical Panel taped to the door. The directory inside had been filled in by hand over the years: air handler heat, ovens, dryer, dishwasher, fridge, disposal, hood, washer. Down at the bottom of both columns, tandem breakers were doing the work of two circuits per space. A panel like that still turns the lights on. What it can no longer do is take anything new without somebody getting creative, and creative is not a word you want near a load center. The goal here was the whole panel, not one circuit: checked at the service, reworked inside, protected against surges and closed up with room to spare. Anyone hiring an electrician in Winter Park for panel work should expect the outside equipment to be opened before the inside is touched.
When does a full panel need an upgrade instead of one more breaker?
When the only way left to add a circuit is another tandem, or when a new 240 volt load shows up and there are no two open spaces side by side. This panel was at that point.

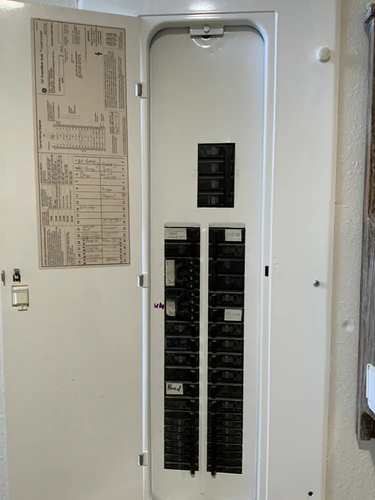

Look at the door photo. The top of each column is taken by the big two pole loads, the air handler heat on the left and the ovens on the right. Everything below them is general purpose circuits, and the last several rows on both sides are tandems. Every load center lists which positions accept tandem breakers. Once those are used up, putting in another one is not a space problem anymore. It is a code problem.
The handwritten directory tells its own story. Some lines are crossed out and rewritten. Others are blank. That matters the day a breaker trips at night and nobody knows what it feeds. Our rule on an electrical panel upgrade is simple. Every circuit gets traced and named before the cover goes back on, because a panel you cannot read is a panel you cannot safely work on.
What gets checked at the service before the panel is opened up?
The main breaker, the breaker that feeds the house panel, and every lug and conductor between the two. Upgrading the inside does nothing for a tired service.

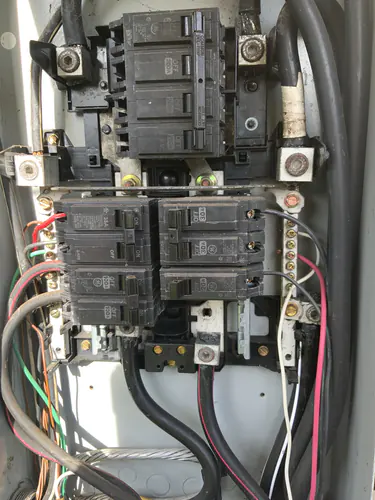

On this house that equipment lives outside in a gray enclosure. The close photo shows a GE 200 amp main at the top with a common trip handle tying the poles together. Below it sit a 100 amp two pole breaker, a 35 amp two pole, a 30 amp two pole and a single 20. Service entrance cable comes in from the side, and the larger conductors drop out the bottom toward the loads they serve.
Why start here? Because the numbers in this box set the ceiling for everything inside. A panel fed through a 100 amp breaker can never draw more than 100 amps, however many empty spaces it has. We also look at how each lug is torqued, whether the insulation near the terminals shows heat. If the outside gear raises questions nobody can answer, a full electrical inspection is the cheaper way to find out, and it happens before a single breaker gets pulled.
Why add surge protection while the panel is open?
Because the dead front is already off, and a device at the panel covers every circuit on the bus at once.

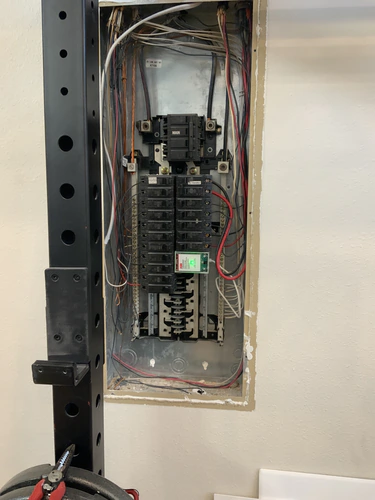

The white module in the open photos is an ABB THQLSURGE, a Type 2 surge protective device that plugs onto the bus like a breaker and takes two spaces. The small green light on its face is the part homeowners should care about. Green means it is still protecting. When that light goes out, the device has absorbed what it can and needs replacing.

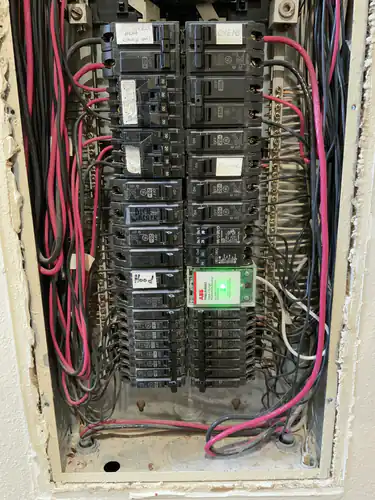

The rest of the open work is less visible and just as important. Red and black conductors run down both gutters and turn in to their breakers without crossing the face of the panel. The original labels for the ovens, hood, dishwasher and air handler heat stayed on the breakers they belong to. None of that shows once the cover is on. You notice it the next time anybody has to work in there. Pairing panel work with whole home surge protection is one of the easier calls to make.
How much spare room should a panel have after an upgrade?
At least two open spaces side by side, and ideally more. That pair is what a future 240 volt circuit needs.

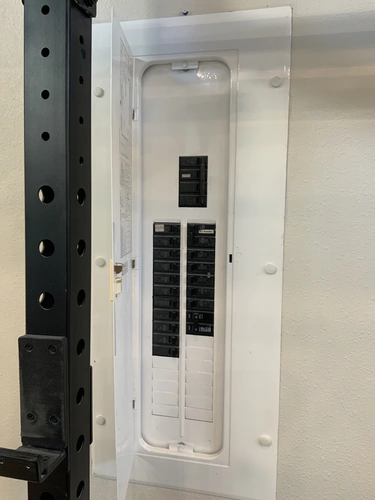

In the finished photo the main sits in its own block marked MAIN, the air handler has a printed label, and the lower rows in both columns are closed with filler plates rather than breakers. Those blanks are the point. Each one is a space the next project can use without anyone reaching for a tandem. With the dead front off you can see the bare bus stabs waiting behind them.
Plenty of Winter Park homeowners already know what that next project is. An EV charger installation wants two spaces and a large continuous load. So does the transfer equipment for a whole home generator. Planning for both now is far cheaper than opening this panel again in two years.
One last thing in that photo. The squat rack is close. Code wants a clear working space in front of a panel, 30 inches wide and 36 inches deep, so equipment in the room should not creep into that zone.
