Outdoor Master Switch Replacement in Oviedo
No power to anything outside the house. One meter, one failed switch, and a reading of 124 volts once the new one went in.
- ScopeNo power outside, circuit testing, master switch replacement
- LocationOviedo, Florida
- SectorResidential
- EquipmentExterior breaker enclosure, Intermatic timer, Hunter irrigation controller
Nothing outside the house had power. Inside, everything worked.
That split is the clue, and it is a more common call than people expect. This house is in Oviedo, a short drive east of our shop in Casselberry. The exterior equipment is spread across the stucco: a gray metal breaker enclosure under a flat cap, a tan Intermatic timer box, a white weatherproof enclosure above it, and, beside a wood framed glass door, a Hunter irrigation controller with a switched box mounted just to its left. Any of those could have been the break, since each one takes power in from somewhere and each one can quietly stop passing it along. The fix turned out to be one device, the master switch, and finding it took a meter rather than a guess. Anyone looking for an electrician in Oviedo for a dead outdoor circuit should expect exactly that order: measure first, buy parts second.
Why does everything outside a house lose power at once?
Because it usually runs through a shared control point. When that point fails, the timer, the controller and whatever else sits on the same feed all drop out together while the house keeps running.

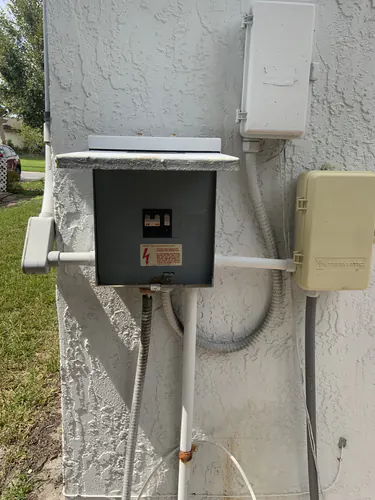

The first photo shows how that kind of chain gets built. A gray metal enclosure with a two pole breaker hangs on the side wall. Flexible metal conduit and white PVC run out of it toward the neighboring boxes, including the Intermatic timer to its right. It is a neat setup. It is also a series of links, and the whole run is only as reliable as the weakest one.
Look closely and the weather shows. The cap over the enclosure has aged in the sun. The strap on the PVC below it has rusted. Years of Florida heat, afternoon storms and sprinkler overspray will do that to anything bolted to an outside wall. None of it proves the breaker was the problem, and it wasn't. It proves there were several places to look. On any residential electrical service call like this, the job is narrowing those places down with readings, not replacing each box in turn until something comes back.
How does an electrician prove an outdoor switch has failed?
With a live voltage reading at the switch, then the same reading again after the repair. If the numbers change from nothing to normal, the failed part has been found.

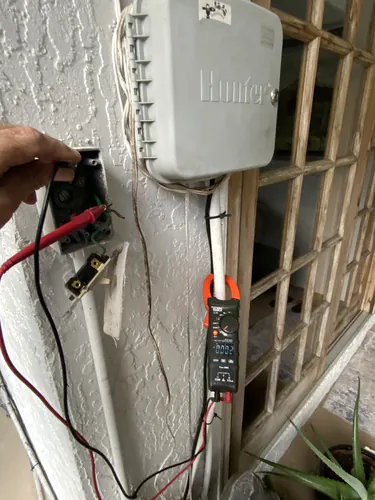

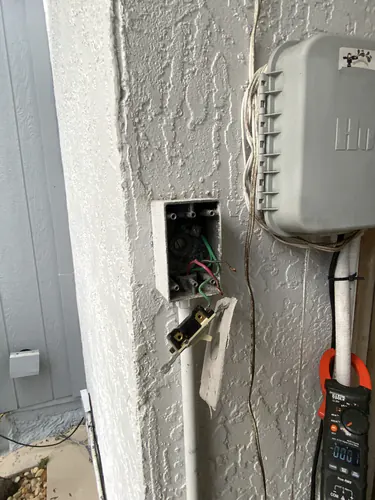

The cover came off the single gang box beside the Hunter controller. Inside sit a red and a black conductor on the switch and green equipment grounds in the back of the box. The device is an ordinary toggle. With a Klein True RMS clamp meter hanging off the conduit and the test leads on the conductors, the display read 0002. Effectively zero.

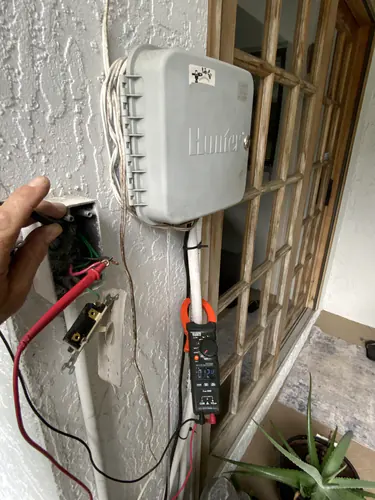

After the new switch went in, the same test on the same conductors read 0124. That is normal 120 volt household power, running a hair high, which is common. Two minutes of testing. Compare that to replacing a timer or an irrigation controller on a hunch, spending the money, and still having a dead yard because the real fault was a worn switch. Nearly every outlet and switch installation we do starts the same way, inside the house or out.
When is a dead outdoor circuit worth a service call?
Once you have checked the breaker, any GFCI outlet upstream of the equipment, and the timer's manual override. If all three look fine and there is still no power, the fault is in the wiring or a device.
Outdoor switches have a rough life. The box in this photo is surface mounted on an exterior wall a few feet from a door, with the Hunter controller's zone wiring looped around its side. Humidity and heat cycle through it every single day. Terminal screws loosen over time and contacts wear. Eventually a switch that still clicks like normal stops passing current, and there is no scorch mark to tell you which device quit.
We would rather you not start swapping parts on a circuit that feeds irrigation or pool equipment, where water and 120 volts share a few square feet of wall. If lights or outlets elsewhere in the house are also acting up, an electrical inspection will turn up the other worn devices before they fail. And when the outage lands on a weekend, our emergency electrician line is answered around the clock.
