Burned Kitchen Outlet Replaced in Oviedo
A scorched countertop receptacle on a subway tile backsplash, pulled, checked behind the face and replaced with a new 20 amp device.
- ScopeBurned countertop receptacle replaced
- LocationOviedo, Florida
- SectorResidential
- Equipment20 amp duplex receptacle, white cover plate
Brown marks around the slots of an outlet are not dirt. They are heat.
This call was a kitchen countertop receptacle in an Oviedo home, set into a white subway tile backsplash with dark grout a few inches above a white quartz style counter. The top half of the old duplex had discoloration spreading out from the slots, the tan and brown staining a connection leaves when it runs hot for a while. The repair itself is small. Kill the circuit, pull the device, look hard at what is behind it, and set a new receptacle back into the same opening without cracking a tile. The looking is the part that matters. A burned face tells you something went wrong at that outlet, but it does not tell you whether the damage stops at the device or carries on into the box and the wire. Anyone calling an electrician in Oviedo about a scorched outlet should expect the box to be opened and checked, not just a fresh face screwed over the problem.
What does a burned outlet look like?
Usually a brown or tan stain around one or more slots, sometimes with a melted edge or the smell of hot plastic. On this backsplash it was the upper receptacle that took the damage.
Look closely at the before photo. The lower half of the duplex is still clean white. The upper half is stained around both blade slots and the ground hole. On a counter, the top outlet is the one people reach for, so that is where plugs get pushed in and yanked out the most and where the contacts wear loose first. Worn contacts grip a plug blade poorly. Poor grip means resistance, and resistance under a real load means heat.
It was also a 15 amp device. You can tell by the two straight slots with no T shape on the neutral side. That is not a code violation by itself, since a 15 amp duplex is allowed on a 20 amp circuit that feeds more than one outlet. It does mean this receptacle spent years carrying kitchen loads like a toaster oven or a kettle that sit near the top of what a plug and its contacts are built for. Other warning signs worth acting on: a cover plate that feels warm, plugs that fall out on their own, or lights that flicker when something on the counter kicks on. Any of those is a good reason to book residential electrical service before the stain shows up.
What goes into replacing a burned receptacle?
A dead circuit, a look at the wire ends and the box, then a new device rated for the circuit. The receptacle is the cheapest part of the job.

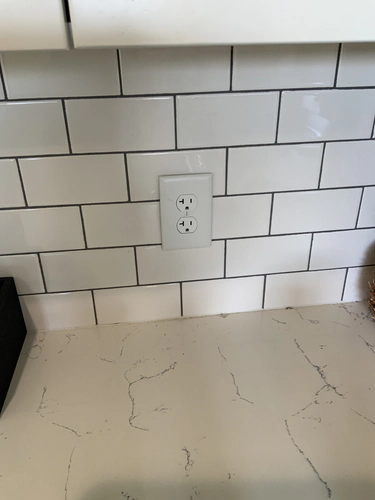

The replacement in the after photo is a 20 amp duplex. The neutral slots have the sideways T that accepts a 20 amp plug. It sits in the same opening on the same tile, square to the grout lines, under a plain white cover plate that seats flat against the backsplash. Nothing on the wall had to be cut or patched.
What you cannot see is the more important half. Heat strong enough to brown the face of a receptacle often cooks the insulation right at the terminals, so on a burned outlet the conductors get checked before anything new goes in. Brittle or darkened insulation gets trimmed back to clean copper. Wires land on the terminal screws and get tightened properly instead of being pushed into back stab holes, a common failure point on older devices. Kitchen countertop outlets also need GFCI protection. That can come from a GFCI receptacle upstream or a GFCI breaker, which is why this new device has no test and reset buttons of its own, but the protection has to be confirmed before the job is closed out. It is a routine step in our outlet and switch installation work.
Should you replace a burned outlet yourself or call an electrician?
Call an electrician. Swapping the device is easy. Knowing whether the problem stopped at the device is not.
A scorched receptacle is a symptom. The cause might be a loose terminal inside that one box, which a replacement fixes for good. It might be a circuit carrying more than it should, which will cook the next outlet too. It might be aluminum branch wiring, which some Central Florida homes built in the late 1960s and 1970s still have and which needs connectors rated for it. Or the real fault might sit upstream at another outlet on the same run. Put a new device on top of any of those and you have only reset the clock.
If an outlet is hot to the touch, smells like burning plastic, or has sparked, switch off its breaker and leave it off. That is a call for an emergency electrician, not a weekend project. And if more than one outlet in the house is browning or loose, an electrical inspection of the whole system usually costs less than chasing them one at a time.
From the job site
Oviedo burned outlet replacement photos
